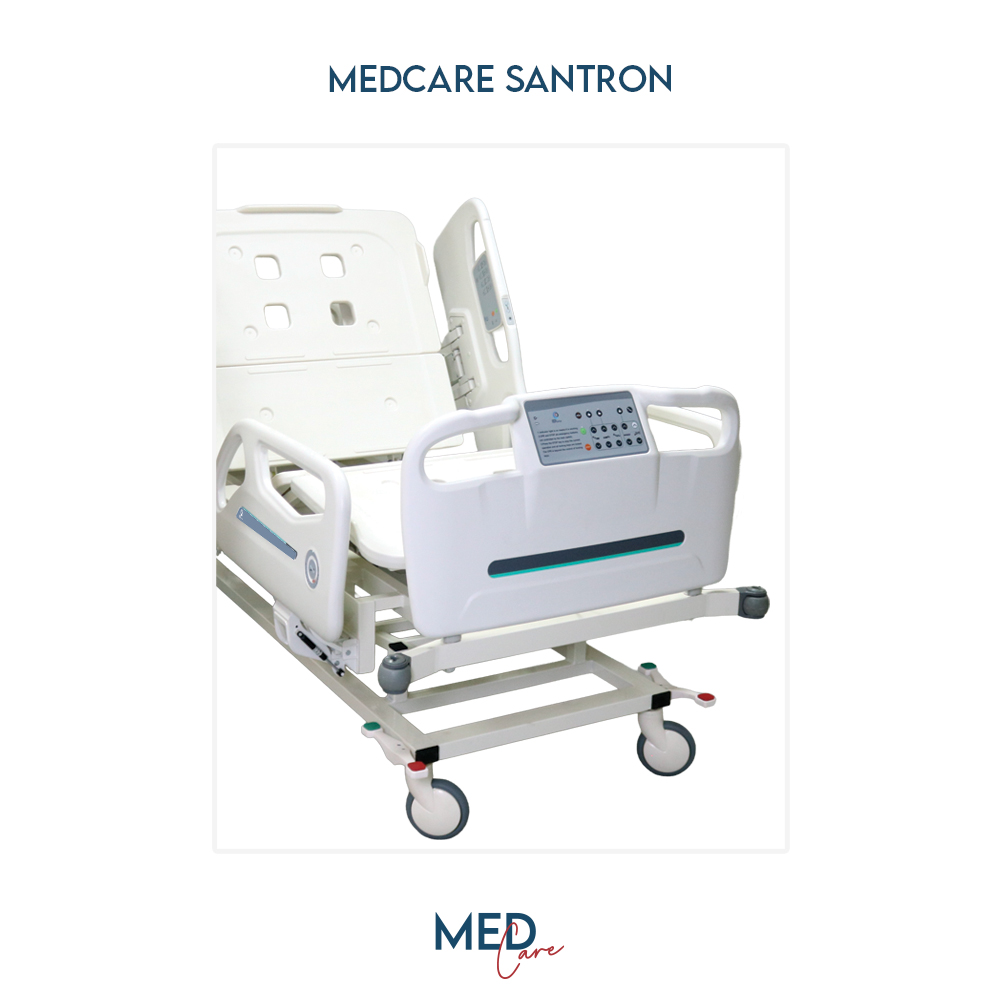

Santron Hospital Bed
Model: SANTRON
HOSPIcare's flagship electric ICU bed. Advanced clinical positioning (cardiac chair, Trendelenburg), integrated X-ray cassette holder, central braking and under-bed lighting. Hospital-grade, manufactured in Saudi Arabia.
Key Features
- Integrated X-ray cassette holder
- Side patient control panel and standard footboard control
- Clinical positioning modes: flat examination, cardiac chair, bed entry/exit, Trendelenburg and reverse Trendelenburg
- Central braking with directional lock
- Under-bed lighting and side bumpers with integrated IV pole
- Hygienic removable sleep surface, hospital-grade construction
Positions & Functions
The Santron Hospital Bed is the flagship electric ICU bed of HOSPIcare, 215 cm long and 95 cm wide with a 45–75 cm height range. It provides flat examination, cardiac chair, bed entry and exit, Trendelenburg and reverse Trendelenburg positioning from a side patient control panel and standard footboard control, with an integrated X-ray cassette holder so imaging happens without moving the patient.
Central braking with directional lock, under-bed lighting for night rounds, side bumpers with an integrated IV pole, a hygienic removable sleep surface and an optional orthopedic arm complete the hospital-grade construction. Made in Madinah under ISO 13485:2016 and carrying the Saudi Made mark, the Santron is on the NUPCO framework NPT0027-24 under supplier code 401663.
Technical Specifications
Schematic drawing — values from the technical specifications.
| Length | 215 cm |
|---|---|
| Width | 95 cm |
| Height | 45–75 cm |
| Positioning modes | Flat, cardiac chair, Trendelenburg, reverse Trendelenburg |
| Brakes | Central braking with directional lock |
| X-ray | Integrated cassette holder |
| Optional | Orthopedic arm |
| Maximum load | 250 kg |
FAQ
What is the Santron ICU bed from MEDcare?
The Santron is HOSPIcare's electric ICU bed from the MEDcare line, 215 cm long and 95 cm wide, with a height range of 45 to 75 cm. It offers flat examination, cardiac chair, bed entry/exit, Trendelenburg and reverse Trendelenburg positions, with an integrated X-ray cassette holder so imaging can be done without moving the patient.
Is a safe working load published for the Santron ICU bed?
The Santron ICU bed is rated to a safe working load of 250 kg, which covers the large majority of adult patients in intensive care. If you need to specify the bed for a heavier patient, contact us to confirm suitability before you order.
What is the Trendelenburg position used for on the Santron bed?
The Trendelenburg position on the Santron bed tilts the bed so the feet are raised above the head, used in intensive care according to the treating physician's own protocol, while reverse Trendelenburg tilts the other way. Both positions are set from the side patient panel or the footboard control.
How does the braking system work on the Santron bed?
The Santron bed uses central braking with a directional lock, so nursing staff can brake all the castors from one control point instead of setting each castor individually. The directional lock keeps the bed travelling in a steady direction while it is moved along a corridor, for more precise and stable maneuvering.
What's the difference between the Santron and Santron Pro ICU beds?
The Santron Pro adds three features the Santron does not have: an integrated weighing scale, a foot panel with a display screen for nurse control in place of the Santron's standard foot-panel control, and a bed-exit alarm. Both beds share the same 215 cm by 95 cm frame, 45 to 75 cm height range and clinical positioning modes. See the Santron Pro ICU bed for its full specification.
Can the Santron bed be bought through the NUPCO framework agreement?
Yes, the Santron (MLH-01S) is one of the awarded models. Medica-Lab is NUPCO supplier 401663, with 33 line items awarded on framework NPT0027-24 for medical furniture, including the F5 (MLH-01) and Santron (MLH-01S) electric beds and the MLC-05 and MLC-02 examination tables, so hospitals served by NUPCO can source these through the framework. Other models, such as the Santron Pro, are supplied by direct purchase or tender.
What determines the price of the Santron ICU bed?
The price depends on the configuration ordered, including the optional orthopedic arm, along with the quantity, the delivery city, and the warranty and installation terms. Send us the quantity and delivery city through the quote form and we reply with a written quotation within one working day; hospital projects and tenders are quoted per project. See what determines the price of an electric hospital bed.
