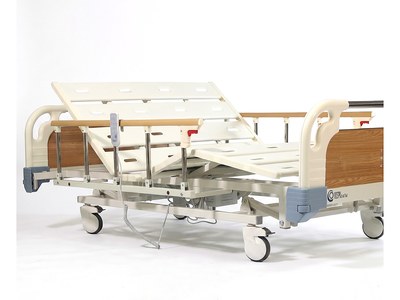

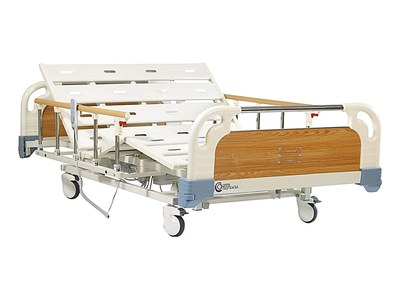

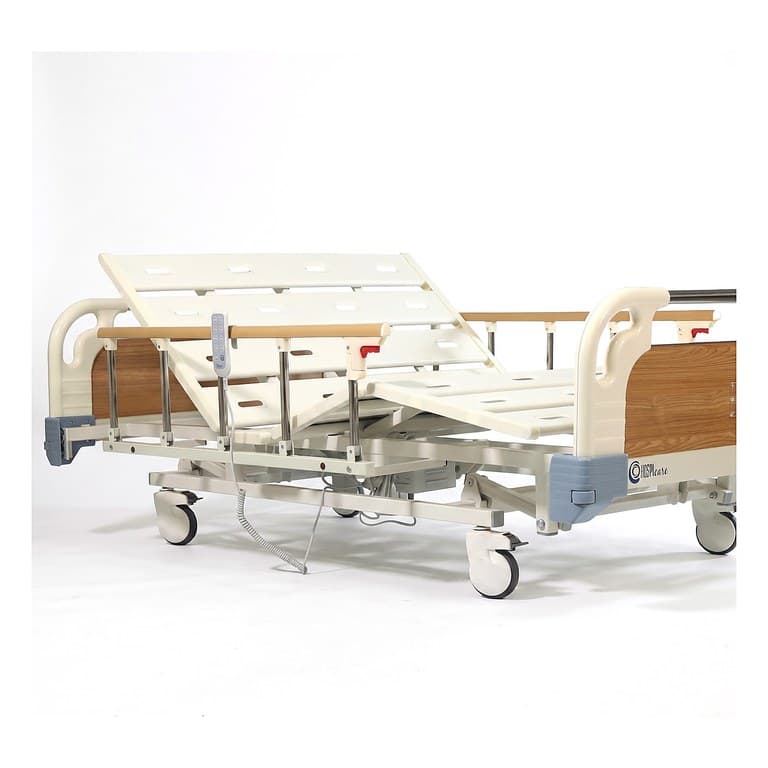

Three-Function Bariatric Bed (Wide)
Model: MLP-12
Bariatric three-function bed with a 120 cm sleeping surface rated up to 300 kg, with silent braked castors, detachable ABS boards and stainless steel IV pole.
Key Features
- Safe working load 300 kg
- 120 cm sleeping surface
- Silent castors with brakes
- Removable ABS head and foot panels
- Stainless steel IV pole
Positions & Functions
The Three-Function Bariatric Bed (Wide) (MLP-12) has a 120 cm sleeping surface on a 200 cm long platform at 61 cm height, with a 300 kg safe working load. It carries three positioning functions, silent castors with brakes, removable ABS panels and a stainless steel IV pole.
The MLP-12 is usually specified alongside the MLP-11 in tenders that call for bariatric beds, and takes the same options: backup battery, CPR system, radiolucent backrest, under-bed lighting, bed extension and central braking. It is made in Madinah and Badr City under ISO 13485:2016, and Saudi-made units carry the Saudi Made mark under SFDA licence.
Technical Specifications
Schematic drawing — values from the technical specifications.
| Length | 200 cm |
|---|---|
| Width | 120 cm |
| Height | 35–61 cm |
| Maximum load | 300 kg |
| Optional | Backup battery, CPR system, radiolucent backrest, under-bed lighting, bed extension, central braking |
FAQ
How wide is the sleeping surface on the MLP-12 bariatric bed?
The Three-Function Bariatric Bed (Wide) (MLP-12) offers an extra-wide 120 cm sleeping surface on a 200 cm long platform with a height that adjusts from 35 to 61 cm, and a 300 kg safe working load. It carries three positioning functions, silent castors with brakes, removable ABS panels and a stainless steel IV pole.
When would a ward order the MLP-12 instead of a standard bed?
When a patient needs a wider sleeping surface than a standard bed offers: the MLP-12's surface is 120 cm wide, against 90 cm on standard Prime Care beds such as the MLP-02, and the bed is built to a 300 kg safe working load. It is usually specified alongside the MLP-11 in tenders that call for bariatric beds.
What is the difference between the MLP-12 and the MLP-11 bariatric bed?
They share the same platform, 300 kg safe working load and positioning, and differ in their side rails: both are three-function bariatric beds on a 200 by 120 cm platform with a 35 to 61 cm height range and the same six options. The MLP-11 is usually specified alongside the MLP-12 in bariatric tenders, so quote the exact model code your tender names when you request a quotation.
What options are available with the wide MLP-12 bed?
Six options are available for the MLP-12: a backup battery, a CPR system, a radiolucent (X-ray translucent) backrest, under-bed lighting, a bed extension and central braking. None of them is fitted as standard, so name the options you want in your quotation request and we will price the bed with them included.
What happens to the MLP-12 bariatric bed if the power goes out?
The MLP-12 has no backup power fitted by default; a battery backup and a CPR system are both available as options at the time of order. Specify these upfront if the ward needs positioning to keep working through an outage, since they are not part of the base wide bariatric bed.
What determines the price of the MLP-12 bariatric bed?
The price depends on the options fitted, such as a backup battery, CPR system or central braking, along with the quantity ordered, the delivery city, and the warranty and installation terms. Send us the model, quantity and city through the quote form and we reply with a written quotation within one working day. See what determines the price of an electric hospital bed.
